Our Products

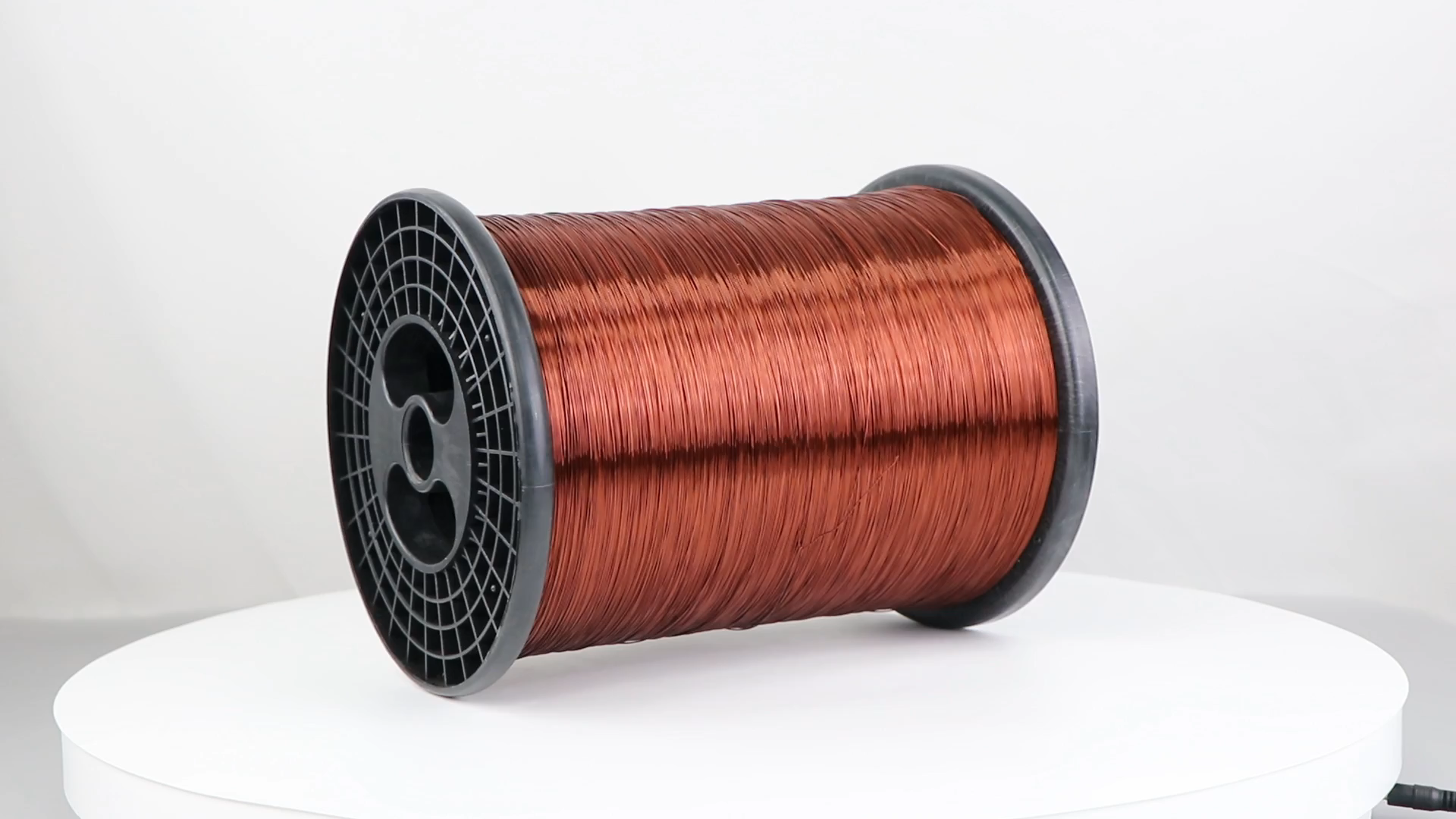

Super Enamelled Winding Copper Wires
We offer a superior range of enamelled copper wires aiming to cater the wide variety of applications in the industry ranging from a common motor rewinding to most critical applications like in automobiles. Enamelled winding wire is a film insulated copper (or aluminium) electrical conductor used in form of coil windings in motors, transformers, generators and other electromagnetic equipment’s. When wound into coils, and energized, enamelled winding wire creates an electromagnetic field, which is utilized to generate the required output form of energy – viz electrical to mechanical (or vice versa) electrical to electrical, and electrical to magnetic energy.
| Types | Modified Polyester 130°C | Modified Polyester 155°C | Polysterimide 180°C | Dual Coated Wire PE/PEI + PAI 200°C |
|---|---|---|---|---|
| Range | 0.06 to 5.0 mm | 0.06 to 3.0 mm | 0.06 to 5.0 mm | 0.06 to 4.0 mm |
| Specifications | IS 13730-34 IEC 60317-34 IS 13730-9 IEC 60317-9 | IS 13730-3 IEC 60317-3 | IS 13730-8 IEC 60317-8 IS 13730-15 IEC 60317-15 | IS 13730 -13 IEC 60317 - 13 NEMA MW 35A/35C IEC 60317 - 25 |
Applications
Super Enamelled Copper wires are mainly used in domestic equipment, pumps, motors, stabilizers, transformers, fans, auto electricals, heavy duty domestic appliances, motors, compressors, large motors and generators.
