Our Products

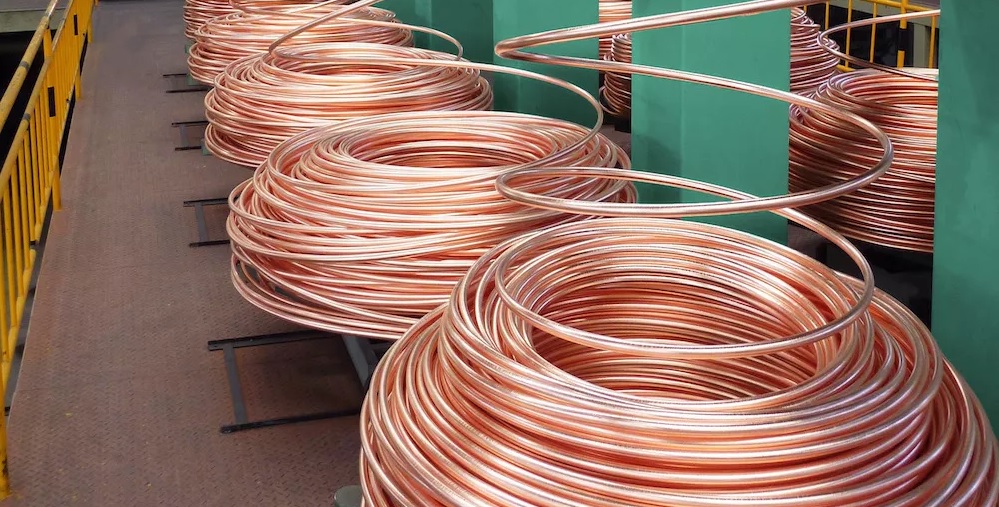

Oxygen Free Copper Rods
Our Oxygen Free Wire Copper Rod is produced with high-quality cathodes with a copper content of more than 99.99%. It is perfectly suited for continuous extrusion applications, renewable energy, magnet wire, satellite and space field, etc. Special attention is given to purity throughout the manufacturing process.
The product offers following advantages
- A clean metallic surface free of organic carbon
- Resistant to hydrogen embrittlement
- Excellent and homogenous product quality
- Narrow tolerances for rod diameter
| Items | Specification |
|---|---|
| Copper content | 99.99 % Min. |
| Oxygen content | 10 ppm Max. |
| Copper grade | C10100/OFE, C10200/OF |
| Diameter | 8.0 - 20.0 mm |
| Tolerance | +/- 0.20 mm |
| Electrical conductivity (% IACS @ 20o C) | 101 % IACS (min) |
| Surface condition | Clean and free from scratches |
| Packaging : Internal diameter Outer diameter |
800 ± 100 mm 1200 ± 100 mm Sea worthy packing on wooden pallet |
| Coil weight | 1 MT, 2 MT, 3 MT or Customer's requirement |
Applications
It is used in applications where high electrical and thermal conductivity are the essential requirements. It can be joined with all welding and brazing methods and it is suitable for manufacturing processes requiring extreme deformability.
